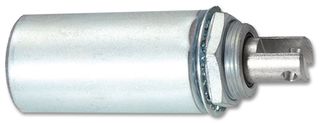

이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.
주문 가능
제조업체 표준 리드 타임: 17주
입고 시 알림 요청
수량 | 가격 |
---|---|
1+ | ₩114,018 |
5+ | ₩110,996 |
10+ | ₩106,771 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩114,018
부품 번호 /라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
이 번호는 주문 확인서, 청구서, 발송장, 웹 확인 이메일, 제품 라벨에 추가됩니다.
제품 정보
제조업체MAGNET SCHULTZ
제조업체 부품 번호R16X16,24V100%
주문 코드1162567
기술 데이터 시트
Solenoid OperationPull
Solenoid Duty CycleContinuous
Coil Voltage24VDC
Holding Force0.11N
Coil Resistance-
Coil Power Continuous5.5W
Coil TerminationWire Leaded
External Diameter25.4mm
External Length50.8mm
Product Range-
제품 개요
The R16X16,24V100% is a 5.5W 24VDC Cylindrical Solenoid with electroplated body, pull operation, continuous duty cycle. It features robust, enclosed coil design with threaded nose for mounting through bulkhead, integral clevis end, compact, long stroke design, threaded mounting nose with anti-rotation, locknut and shake proof washer, armature and pole piece for corrosion resistance, coil insulation to class-B.
- 25mm Maximum stroke
- 0.1N Magnetic force at maximum stroke
- 25.3N Holding force
애플리케이션
Industrial
기술 사양
Solenoid Operation
Pull
Coil Voltage
24VDC
Coil Resistance
-
Coil Termination
Wire Leaded
External Length
50.8mm
Solenoid Duty Cycle
Continuous
Holding Force
0.11N
Coil Power Continuous
5.5W
External Diameter
25.4mm
Product Range
-
기술 문서 (1)
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:United States
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:United States
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:85059029
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:추후 공고함
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.19958
