MAX40200EVKIT#

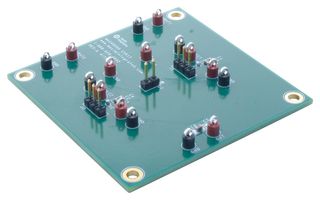

The MAX40200EVKIT# is an evaluation kit (EV kit) for MAX40200. It provides a proven design to evaluate the MAX40200 ideal-diode. This EV kit demonstrates the MAX40200 in a tiny, space-saving 4 bump wafer-level package (WLP). The MAX40200 is also available in a 5-pin SOT23 (MAX40200AUK+) which is not compatible with this EV kit. The MAX40200 EV kit PCB comes with two MAX40200ANS+ devices installed. The MAX40200 device is a current-switch which drops so little voltage as to approximate an "ideal diode". The MAX40200 part is available in a tiny 0.73mm × 0.73mm 4 bump WLP with a 0.35mm bump pitch and is only 0.5mm high. It operates over the extended -40°C to +125°C temperature range. Typical applications include cellular phones, electronic toys, notebook and tablet computers, portable media players, portable/wearable medical devices and USB-powered peripherals.

• Drops less than 45mV at 500mA
• Less than 2µA leakage when reverse-biased
• Supply voltage range between 1.5V and 5.5V
• Low supply quiescent current 7µA (typ), 18µA (max)
• Thermally self-protecting
• Tiny 0.73mm x 0.73mm 4 bump WLP
• Accommodates easy to use components
• Proven PCB layout
• Fully assembled and tested
