페이지 인쇄

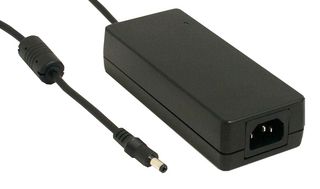

이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.

| 제조업체 | MEAN WELL |
|---|---|
| 제조업체 부품 번호 | GST120A24-P1M복사 |
| 제조업체 표준 리드 타임 | 20주 |
| 주문 코드 | 2815847 |
| Product Range | GST120A Series |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
944 재고
214 지금 제품을 예약하실 수 있습니다
155 1-2 영업일 이내 배송(싱가폴 재고)
789 3-4 영업일 이내 배송(영국 재고)
| 수량 | 가격 |
|---|---|
| 1+ | ₩62,274 |
| 5+ | ₩59,223 |
| 10+ | ₩56,715 |
| 50+ | ₩56,297 |
| 100+ | ₩55,878 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩62,274
라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
제품 정보
| 제조업체 | MEAN WELL |
|---|---|
| 제조업체 부품 번호 | GST120A24-P1M복사 |
| 제조업체 표준 리드 타임 | 20주 |
| 주문 코드 | 2815847 |
| Product Range | GST120A Series |
| 기술 데이터 시트 | |
| Power Supply Applications | ITE |
| No. of Outputs | 1 Output |
| Output Power Max | 120W |
| Output Voltage - Output 1 | 24VDC |
| Output Current - Output 1 | 5A |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Output Connector | Barrel Plug Center Positive 2.5mm x 5.5mm x 11mm |
| Output Voltage - Output 3 | - |
| Output Current - Output 3 | - |
| Power Supply Output Type | Fixed |
| Input Voltage VAC | 85V AC to 264V AC |
| Product Range | GST120A Series |
| Plug Type | Mains Plug Sold Separately |
| SVHC | No SVHC (04-Feb-2026) |
제품 개요
GST120A24-P1M is GS120 series 120W AC-DC industrial adaptor. It complies with EISA 2007, NRCan, AU/NZ MEPS and EU ErP. It includes short circuit, overload, overvoltage, overtemperature. Approved by UL60950-1, CSA C22.2, TUV EN60950-1, PSE J60950-1(except for 48V).
- Output DC voltage is 24V, output rated current is 5A, output rated power is 120W
- Input voltage range from 85 to 264V AC, 120 to 370V DC, efficiency is 81%
- Universal AC input / full range, built-in active PFC function
- No load power consumption of less than 0.5W, energy efficiency Level Ⅴ
- 3 pole AC inlet IEC320-C14, class I power
- Fully enclosed plastic case, LED indicator for power on
- Working temperature range from -30 to +70℃
- 2 years warranty
- Dimension (L x W x H) is 167 x 67 x 35mm
기술 사양
| Power Supply Applications | ITE |
|---|---|
| Output Power Max | 120W |
| Output Current - Output 1 | 5A |
| Output Current - Output 2 | - |
| Output Voltage - Output 3 | - |
| Power Supply Output Type | Fixed |
| Product Range | GST120A Series |
| SVHC | No SVHC (04-Feb-2026) |
| No. of Outputs | 1 Output |
|---|---|
| Output Voltage - Output 1 | 24VDC |
| Output Voltage - Output 2 | - |
| Output Connector | Barrel Plug Center Positive 2.5mm x 5.5mm x 11mm |
| Output Current - Output 3 | - |
| Input Voltage VAC | 85V AC to 264V AC |
| Plug Type | Mains Plug Sold Separately |
기술 문서 (1)
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | China 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 85044095 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .67 |
