페이지 인쇄
이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.
12,414 재고
더 필요하세요?
456 1-2 영업일 이내 배송(싱가폴 재고)
11958 3-4 영업일 이내 배송(영국 재고)
수량 | 가격 |
---|---|
1+ | ₩3,140 |
10+ | ₩2,101 |
25+ | ₩1,902 |
50+ | ₩1,746 |
100+ | ₩1,593 |
500+ | ₩1,390 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩3,140
부품 번호 /라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
이 번호는 주문 확인서, 청구서, 발송장, 웹 확인 이메일, 제품 라벨에 추가됩니다.
제품 개요

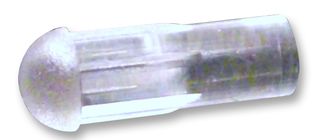

1282.1000 is a spherical light guide for front panels. This light guide can be combined with LED type displays with even surfaces, phases to ease visualization and flush fastening to the front panel. Horizontal arrangement with SMD SIDELEDs as well as vertical variations with SMD TOPLEDs or SMD CHIPLEDs may be inserted deep into the front panel. Easy assembly by just pressing into the front panel drilling.
- Straight variant and flat front
- Overall length of light guide is 8.5mm
- Transparent light pipe colour
- Ambient temperature range from -40°C to 85°C
- ESD protection is less than 12KV
- Surface mounting
- Circular pipe shape
- Diameter of 3.2mm
- UL-94 rated plastic material
기술 사양
Length
8.5mm
Mounting Orientation
Vertical
Light Pipe Mounting
Surface
Product Range
-
No. of Light Pipes
1Pipes
Light Pipe Shape
Circular
Light Pipe Colour
Transparent
SVHC
No SVHC (25-Jun-2020)
기술 문서 (1)
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:Germany
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:Germany
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:90019000
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:예
RoHS
SVHC:No SVHC (25-Jun-2020)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.000084
