ADM00665

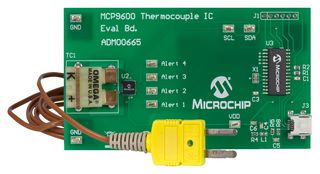

The ADM00665 is a MCP9600 Evaluation Board used to digitize the thermocouple EMF voltage to degree Celsius with ±1C accuracy. Users can easily evaluate the all device features using a type K thermocouple. The device also supports types J, T, N, E, B, S and R. Each of these types are evaluated by replacing the type K thermocouple connector with the corresponding connectors. In addition, evaluation board connects to PC via USB interface. Temperature can be data-logged using thermal management software graphical user interface (GUI).

• Digitize thermocouples
• User programmable digital filter
• 0.0625C Measurement resolution
• 4 User programmable alert limits
• Multiple power save modes

애플리케이션

Test & Measurement, Industrial

목차

Board, USB cable, Type K thermocouple.

메모

90 Day Warranty only. After Expiration of Warranty returns must be processed via Microchip.
