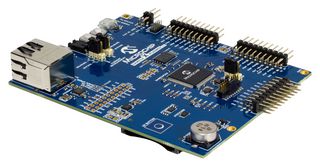

ATSAME54-XPRO

ATSAME54-XPRO is a SAM E54 Xplained Pro evaluation kit. This is a hardware platform for evaluating the ATSAME54P20A microcontroller (MCU). Supported by the Studio integrated development platform, the kit provides easy access to the features of the ATSAME54P20A and explains how to integrate the device into a custom design. This board is supported by MPLAB Integrated tools development environment and MPLAB Harmony.

• ATSAME54P20A microcontroller, Arm® Cortex®-M4F Core
• Digital I/O - 2 mechanical buttons (user and reset button), 1 Atmel QTouch button, 1 yellow user LED
• 256Mb QSPI flash, ATECC508 CryptoAuthentication™ device
• AT24MAC402 serial EEPROM with EUI-48™ MAC address
• RJ45 with magnetics, KSZ8091RNA PHY, 10Base-T/100Base-TX IEEE 802.3 compliant Ethernet transceiver
• SD/SDIO card connector, parallel capture controller header (ArduCAM compatible)
• ATA6561 CAN transceiver, backup SuperCapacitor, 32.768kHz & 12MHz crystal
• 10-pin cortex debug connector with SWD, 20-pin cortex debug + ETM connector with four bit trace
• USB interface, host, and device, three Xplained Pro extension headers
• Azure certified device with IoT plug and play running on the Azure RTOS operating system
