MC122032C6W-SPTLY
Graphic LCD, 122 x 32, Black on Yellow / Green, 5V, Parallel, No Font, Transflective

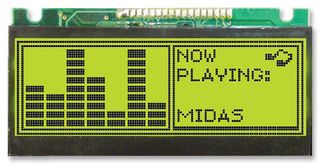

이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.

| 제조업체 | MIDAS DISPLAYS |
|---|---|
| 제조업체 부품 번호 | MC122032C6W-SPTLY복사 |
| 제조업체 표준 리드 타임 | 18주 |
| 주문 코드 | 2342654 |
| Product Range | MC122032C6W |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
6 재고
더 필요하세요?
6 3-4 영업일 이내 배송(영국 재고)
| 수량 | 가격 |
|---|---|
| 1+ | ₩39,863 |
| 5+ | ₩37,587 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩39,863
라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
제품 정보
| 제조업체 | MIDAS DISPLAYS |
|---|---|
| 제조업체 부품 번호 | MC122032C6W-SPTLY복사 |
| 제조업체 표준 리드 타임 | 18주 |
| 주문 코드 | 2342654 |
| Product Range | MC122032C6W |
| 기술 데이터 시트 | |
| Resolution | 122 x 32 |
| Display Appearance | Black on Yellow / Green |
| Logic Voltage | 5V |
| Interface Type | Parallel |
| Font Set | No Font |
| Display Mode | Transflective |
| LCD Display Type | STN |
| Module Size | 59mm x 29.3mm |
| Operating Temperature Min | -20°C |
| Operating Temperature Max | 70°C |
| Display Construction | COB |
| Backlighting Colour | Yellow / Green LED |
| Product Range | MC122032C6W |
| SVHC | No SVHC (25-Jun-2025) |
제품 개요
- Graphic LCD module
- Resolution 122x32 dots (122 x 32)
- Positive mode yellow/green STN material
- Appearance blue/black dots on yellow/green background
- Transflective technology, for both outdoor and indoor applications
- Chip on Board construction (COB) for easy mounting and connection
- Onboard AVANT SBN1661G Controller with standard parallel interface
- 5V logic supply, 1/32 display duty and 1/7 driving bias
- Yellow/green LED backlight
- Preferred 6 o'clock viewing angle
- Wide operating temperature range -20 to +70oC
- 18-way through-hole SIL connection (top, right) with 1.27mm pitch
- Overall dimensions - 59.0 x 29.3 x 5.5mm
- Same foot print as Midas MC21605F series 16 x 2 alphanumeric LCD module
- Viewing area - 52.0 x 15.0mm
- Dot size - 0.345 x 0.345mm
경고
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
기술 사양
| Resolution | 122 x 32 |
|---|---|
| Logic Voltage | 5V |
| Font Set | No Font |
| LCD Display Type | STN |
| Operating Temperature Min | -20°C |
| Display Construction | COB |
| Product Range | MC122032C6W |
| Display Appearance | Black on Yellow / Green |
|---|---|
| Interface Type | Parallel |
| Display Mode | Transflective |
| Module Size | 59mm x 29.3mm |
| Operating Temperature Max | 70°C |
| Backlighting Colour | Yellow / Green LED |
| SVHC | No SVHC (25-Jun-2025) |
관련 제품
1개 제품을 찾았습니다.
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | China 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 85312095 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .011793 |
