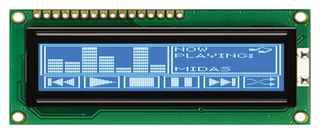

MC144032B6WC-BNMLW

• Graphic LCD module
• Resolution 144x32 dots (144 x 32)
• Negative mode STN (BSTN) material
• Appearance white dots on blue background
• Transmissive technology, for indoor applications
• Chip on Board construction (COB) for easy mounting and connection
• Onboard ST7920 Controller with standard parallel interface
• Controller provides onboard fonts for English and Simplified Chinese characters
• 5V logic supply, plus built in negative voltage generator
• 1/32 display duty
• White LED backlight, via pins A, K
• Preferred 6 o'clock viewing angle
• Wide operating temperature range -20 to +70oC
• 16-way through-hole SIL connection (top, left) with 2.54mm pitch
• Same foot print as industry standard 16 x 2 alphanumeric LCD module
• Overall dimensions - 80.0 x 36.0 x 13.2mm
• Viewing area - 66.0 x 16.0mm
• Dot size - 0.38 x 0.38mm
