MIKROE-5850
Development Board, STM32F407VGT6, Clicker 4, STM32F4 Family, 32-Bit, ARM Cortex-M4F, 168 MHz

| 제조업체 | MIKROELEKTRONIKA |
|---|---|
| 제조업체 부품 번호 | MIKROE-5850복사 |
| 제조업체 표준 리드 타임 | 8주 |
| 주문 코드 | 4263857 |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
더 필요하세요?
| 수량 | 가격 |
|---|---|
| 1+ | ₩146,309 |
제품 정보
| 제조업체 | MIKROELEKTRONIKA |
|---|---|
| 제조업체 부품 번호 | MIKROE-5850복사 |
| 제조업체 표준 리드 타임 | 8주 |
| 주문 코드 | 4263857 |
| 기술 데이터 시트 | |
| Silicon Manufacturer | STMicroelectronics |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-M4F |
| Silicon Core Number | STM32F407VGT6 |
| Silicon Family Name | STM32F4 |
| For Use With | STM32F4 Microcontroller Development Board |
| Kit Contents | Clicker 4 Development Board STM32F407VGT6 |
| Product Range | - |
| SVHC | No SVHC (14-Jun-2023) |
제품 개요

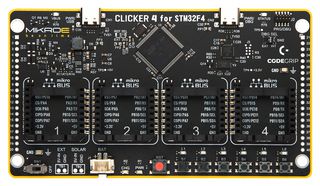

MIKROE-5850 is a Clicker 4 for STM32F4 a compact development board designed as a complete solution, you can use it to quickly build your own gadgets with unique functionalities. Featuring a STM32F407VGT6MCU, four mikroBUS™ sockets for Click boards™ connectivity, power management, and more, it represents a perfect solution for the rapid development of many different types of applications. At its core, there is a STM32F407VGT6 MCU, a powerful microcontroller by STMicroelectronics, based on the high performance Arm® Cortex®-M4 32bit processor core operating at up to 168MHz frequency. It provides sufficient processing power for the most demanding tasks, allowing Clicker 4 to adapt to any specific application requirements.
- USB Type-C connectors. Six LEDs, six push buttons, and a reset button
- On-board debugger and JTAG/SWD header for interfacing with external electronics
- Four mikroBUS™ sockets for adding Click board™
- Small, affordable, yet powerful starter development kit
- Mounting holes simplify integration
- Compact design with clear and descriptive silk screen markings
- Side headers for interfacing with external electronics
목차
Clicker 4 for STM32F4, Damage resistant protective box, 2X 1X20 male pin headers.
기술 사양
| Silicon Manufacturer | STMicroelectronics |
|---|---|
| Core Sub-Architecture | Cortex-M4F |
| Silicon Family Name | STM32F4 |
| Kit Contents | Clicker 4 Development Board STM32F407VGT6 |
| SVHC | No SVHC (14-Jun-2023) |
| Core Architecture | ARM |
|---|---|
| Silicon Core Number | STM32F407VGT6 |
| For Use With | STM32F4 Microcontroller Development Board |
| Product Range | - |
기술 문서 (1)
법률 및 환경
| 관세 번호: | 84733080 |
|---|---|
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (14-Jun-2023) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .000001 |
