0985-0-15-20-71-14-11-0 .

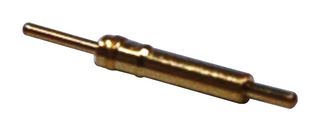

The 0985-0-15-20-71-14-11-0 from Mill Max is a spring loaded pin. It has brass alloy shell with 20μ" gold over nickel plating and stainless steel 302 spring with 10μ" gold over nickel plating.

• Standard stroke, solder mountable in 0.019inch minimum mounting hole
• Pin length is 0.103inch
• 0.0275inch mid stroke, 0.055inch max stroke
• 60g force at mid stroke, 15g initial force (pre-load)
• Current rating is 2A continuous, 3A peak
• Maximum contact resistance is 20mohm
• Operating temperature range from -55°C to +125°C (discontinuous)
• 100,000 cycles durability
• Shock and vibration resistant
