제품 개요

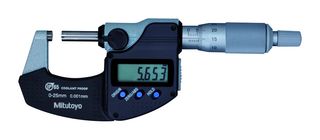

293-240-30 is a digital micrometer. This IP65 micrometer offers outstanding accuracy, without data output, is highly robust and offers the benefits such as oil-resistant material used for all plastic parts, extraordinary battery life of 2.4 years. It is featured excellent resistance against water and dust enables this micrometer to be used in machining situations that include splashing coolant fluid.
- 0 to 25mm range, 0.001mm digital step, ±1µm maximum permissible error J MPE
- Accuracy is ±1µm, 0.3µm flatness, 1µm parallelism, data output
- LCD with character height 7.5mm, with spindle lock, ø6.35mm, spindle pitch 0.5mm measuring
- Thimble and sleeve satin chrome finish, ø18mm scale, 1 battery SR-44 power supply
- Approx. 2.4 years battery life
- ABS / INC (INC ZERO), auto power OFF after 20 min non use
- Function lock, hold
목차
Digital micrometer, Key, 1 battery, Gauge block (from 25 mm upward), Up to 50mm measuring range with factory certificate, Box.
기술 사양
Graduations
0.001mm
Product Range
293
No. of Anvils
-
기술 문서 (1)
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:Japan
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:Japan
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:90173000
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:추후 공고함
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.4
