페이지 인쇄
제품 정보
제조업체MOLEX
제조업체 부품 번호02-08-2003
주문 코드2614971
Product RangeMLX 42023
AKA42023-2A1, GTIN UPC EAN: 800753615656
기술 데이터 시트
Product RangeMLX 42023
Contact GenderPin
Contact Termination TypeCrimp
Wire Size AWG Max14AWG
Contact PlatingTin Plated Contacts
For Use WithMolex MLX 42021 & 42022 Series Plug & Receptacle Housing Connectors
Wire Size AWG Min20AWG
Contact MaterialBrass
SVHCNo SVHC (15-Jan-2019)
02-08-2003의 대체 제품
5개 제품을 찾았습니다.
제품 개요

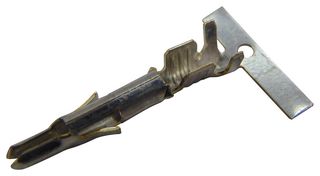

The 02-08-2003 is a MLX™ male pin crimp terminal made of brass with tin plated finish. This 42023 series male crimp terminal accepts 20 to 14AWG wire. It is suitable for use with MLX™ power connectors.
애플리케이션
Commercial Vehicle, Communications & Networking, Consumer Electronics, Industrial
기술 사양
Product Range
MLX 42023
Contact Termination Type
Crimp
Contact Plating
Tin Plated Contacts
Wire Size AWG Min
20AWG
SVHC
No SVHC (15-Jan-2019)
Contact Gender
Pin
Wire Size AWG Max
14AWG
For Use With
Molex MLX 42021 & 42022 Series Plug & Receptacle Housing Connectors
Contact Material
Brass
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:India
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:India
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:85369010
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:예
RoHS
SVHC:No SVHC (15-Jan-2019)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.32
