206523-2122

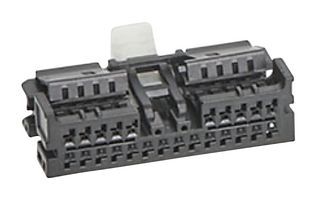

Automotive Connector Housing, Pol B, Mini50 GEN II 206523, Receptacle, 12 Ways
입고 시 알림 요청
| 수량 | 가격 |
|---|---|
| 1+ | ₩922 |
| 10+ | ₩896 |
제품 정보
제품 개요
206523-2122 is a 206523 series, Mini50 unsealed receptacle housing with UL94-HB, CPA. It mates with 0348978121 Mini50 unsealed header, right-angle, SMT, dual row, 12 circuits, Tin (Sn) plating, polarization option B, grey, tape and reel, 0348979121 mini50 unsealed header, right-Angle, SMT, dual row, 12 circuits, Tin (Sn) plating, polarization option B, grey, tube, 0348250125 Mini50 unsealed vertical header, dual row, 12 circuit, polarization option B, grey, tray, 0348259125 Mini50 Unsealed vertical header, dual row, 12 circuit, polarization option B, grey, Tube, 0348260125 Mini50 unsealed right-angle header, dual row, 12 circuit, polarization option B, 2.80mm pin length, grey, tray, 0348269125 Mini50 unsealed right-angle header, dual row, 12 circuit, polarization option B, 2.80mm pin length, grey, tube.
- Dual row, vertical orientation
- 12 maximum circuits
- Features polarized to mating part, lock to mating part and keying to mating part
- Gray PBT resin
- B polarization
- Suitable for automotive, power, wire-to-board applications
기술 사양
Mini50 GEN II 206523
12Ways
PBT (Polybutylene Terephthalate), Glass Filled Body
-
No SVHC (21-Jan-2025)
Receptacle
Molex CTX50 560023 Series Socket Contacts
-
-
법률 및 환경
최종후의 중요 제조 공정이 이루어진 국가원산지:China
최종후의 중요 제조 공정이 이루어진 국가
RoHS
RoHS
제품 준수 증명서
