214770-0210

Off-the-Shelf (OTS) Micro-Fit double-ended, overmoulded assemblies with strain relief are suitable for rugged signal connection. Applications includes consumer and data/computing. Positive latching helps ensure secure retention when receptacle and header or receptacle and plug are mated. Prevents accidental unmating. Mates with Micro-Fit 3.0 plug housings 43640, Micro-Fit TPA plug housing 200875, Micro-Fit 3.0 headers 43650, Micro-Fit 3.0 cable assembly 214752, 214753.

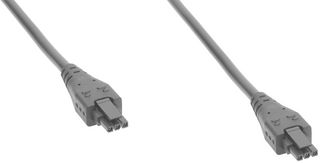

• 214770 series Micro-Fit 3.0 female-to-Micro-Fit 3.0 female off-the-shelf (OTS) cable assembly
• Single row, locking tang on terminals helps secure terminals in housings
• Polarized mating geometry helps prevent accidental mis-mating
• Overmolded strain relief reduces mechanical stress on wires and terminals
• Maximum voltage is 300V AC/DC and maximum current per contact is 8.5A
• Minimum durability of 30 cycles, crimp or compression termination interface style
• Flammability UL 94V-0 rating
• Black colour nylon housing, phosphor bronze terminal, tin plating
• UL 2464 wire/cable type
• Operating temperature range from -20 to +80°C
