39-00-0090
Contact, Mini-Fit Jr. 5556, Socket, Crimp, 16 AWG, Gold Plated Contacts
더 필요하세요?
| 수량 | 가격 |
|---|---|
| 1+ | ₩968 |
| 10+ | ₩754 |
| 25+ | ₩721 |
| 100+ | ₩694 |
| 250+ | ₩657 |
| 500+ | ₩621 |
| 1000+ | ₩561 |
| 8000+ | ₩560 |
제품 정보
제품 개요

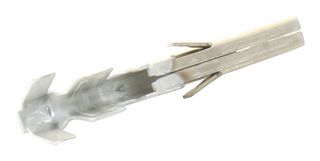

The 39-00-0090 is a Mini-Fit® female socket crimp terminal made of brass with gold plated finish. This 5556 series female crimp terminal accepts 16AWG wire. The socket terminal mates with 5558 Mini-Fit® crimp male terminals, 5566 and 5569 dual row Mini-Fit Jr.™ header. It can be used with 5557 Mini-Fit Jr.™ receptacle housing, 30067 Mini-Fit® TPA, 42474 Mini-Fit® BMI panel mount, 5559 Mini-Fit Jr.™ dual row plug housing. The terminal is suitable for power applications.
- Maximum current per contact is 9A
- Maximum voltage is 600V
- Maximum durability of 30 mating cycles
애플리케이션
Automotive, Commercial Vehicle, Communications & Networking, Consumer Electronics, Industrial, Medical, Communications & Networking
기술 사양
Mini-Fit Jr. 5556
Crimp
Gold Plated Contacts
-
No SVHC (21-Jan-2025)
Socket
16AWG
Molex Mini-Fit Jr. 5557, Mini-Fit TPA 30067 & Mini-Fit BMI 42474 Series Rcpt Housing Connectors
Brass
기술 문서 (2)
39-00-0090의 대체 제품
2개 제품을 찾았습니다.
법률 및 환경
최종후의 중요 제조 공정이 이루어진 국가원산지:United States
최종후의 중요 제조 공정이 이루어진 국가
RoHS
RoHS
제품 준수 증명서
