TBMV300-Q-LT-I2C-00A

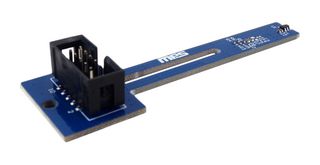

TBMV300-Q-LT-I2C-00A is an MV300 MagVector™ 3D magnetic sensor test board with I2C communication interface. This test board is designed to work with the EVKT-MV-RP-PICO evaluation kit and the MagVector Evaluation App Software. It is also possible to use this test board directly with any microcontroller (MCU) that has a 3.3V I2C interface.

• Supply voltage (VDD) range from 3V to 3.6V
• 3D (X, Y, and Z) magnetic sensing
• 12bit data length
• ±150mT magnetic field range
• 0.2mT RMS noise (X, Y) and 0.1mT RMS noise (Z) at 20kHz refresh rate
• On-chip temperature sensor, 40μs conversion time per channel
• Data updates upon user request in host-controlled mode
• Selectable Update Rate in Auto Sampling Cycle (ASC) mode
• 30nA current consumption in power-down state
• Operating temperature range from -40°C to +125°C

메모

MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size.
