페이지 인쇄

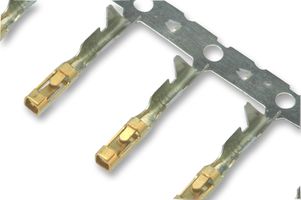

이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.

| 제조업체 | MULTICOMP PRO |
|---|---|
| 제조업체 부품 번호 | 2226TG복사 |
| 제조업체 표준 리드 타임 | 24주 |
| 주문 코드 | 풀릴2470395 컷 테이프1593529 |
| Product Range | 2226 |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
126,559 재고
279,000 지금 제품을 예약하실 수 있습니다
19,734 1-2 영업일 이내 배송(싱가폴 재고)
106,825 3-4 영업일 이내 배송(영국 재고)
포장 옵션
| 포장 유형 | 수량 | 단가: | 총계 |
|---|---|---|---|
| 컷 테이프 | 1 | ₩192 | ₩192 |
| 총계 가격 | ₩192 | ||
컷 테이프
| 수량 | 가격 |
|---|---|
| 1+ | ₩192 |
| 50+ | ₩127 |
| 100+ | ₩119 |
| 200+ | ₩114 |
풀릴
| 수량 | 가격 |
|---|---|
| 10000+ | ₩112 |
| 30000+ | ₩107 |
라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
제품 정보
| 제조업체 | MULTICOMP PRO |
|---|---|
| 제조업체 부품 번호 | 2226TG복사 |
| 제조업체 표준 리드 타임 | 24주 |
| 주문 코드 | 풀릴2470395 컷 테이프1593529 |
| Product Range | 2226 |
| 기술 데이터 시트 | |
| Product Range | 2226 |
| Contact Gender | Socket |
| Contact Termination Type | Crimp |
| Wire Size AWG Max | 24AWG |
| Contact Plating | Gold Plated Contacts |
| For Use With | Wire-to-Board Crimp Housings |
| Wire Size AWG Min | 28AWG |
| Contact Material | Brass |
| SVHC | To Be Advised |
제품 개요
2226TG is a gold plated wire to board crimp terminal.
- Brass contact material
- 3A AC/DC current rating and 250V AC/DC voltage rating
- 20mohm max contact resistance
- Withstanding voltage of 800V AC for one minute
- Operating temperature range from -25°C to +85°C
- Application wires range from 28AWG to 22AWG
- 1.7mm (max) insulation O.D
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12-month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
기술 사양
| Product Range | 2226 |
|---|---|
| Contact Termination Type | Crimp |
| Contact Plating | Gold Plated Contacts |
| Wire Size AWG Min | 28AWG |
| SVHC | To Be Advised |
| Contact Gender | Socket |
|---|---|
| Wire Size AWG Max | 24AWG |
| For Use With | Wire-to-Board Crimp Housings |
| Contact Material | Brass |
기술 문서 (1)
2226TG의 대체 제품
1개 제품을 찾았습니다.
관련 제품
3개 제품을 찾았습니다.
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | Taiwan 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 85369010 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | To Be Advised |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .00013 |
