페이지 인쇄
이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.
247 재고
더 필요하세요?
247 3-4 영업일 이내 배송(영국 재고)
수량 | 가격 |
---|---|
1+ | ₩15,610 |
25+ | ₩14,735 |
100+ | ₩13,787 |
250+ | ₩13,098 |
500+ | ₩12,838 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩15,610
부품 번호 /라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
이 번호는 주문 확인서, 청구서, 발송장, 웹 확인 이메일, 제품 라벨에 추가됩니다.
제품 정보
제조업체MULTICOMP PRO
제조업체 부품 번호76-120
주문 코드2688560
AKAGTIN UPC EAN: 3760122595439
기술 데이터 시트
Lead Length - Imperial3.3ft
Current Rating12A
Voltage Rating600VAC
제품 개요

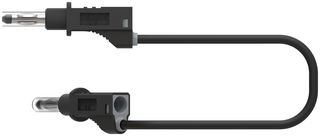

The 76-120 from Tenma is a black colour stacking retractable sleeve 4mm banana (male) plug to stacking retractable sleeve 4mm banana (male) plug lead. It is used for connecting to single port 4mm banana jacks, sockets and binding posts while covering the plugs. It is also used for general purpose electric testing, controlling and measuring. The design and material of the lantern contact springs meet the needs of low resistance and reliability. The lead complies with the european LVD by meeting the harmonized standard EN / IEC 61010-031. It features electrical safety according to EN/IEC 61010-031:2008. 600V CAT II, reinforced insulation, up to 36A (at +40°C) depending on the wire.
- Length of 100cm
- Retracting clear sleeves to connect to both single port sockets and safety double port sockets
- Rear 4mm banana female connections to stack the plugs
- Insulating gray tip to prevent accidental contact
- Operating temperature range from -20°C to +80°C
- Nickel plated brass conductor, silicone wire jacket
- 12 month limited warranty *view Terms & Conditions for details
기술 사양
Lead Length - Imperial
3.3ft
Voltage Rating
600VAC
Current Rating
12A
76-120의 대체 제품
2개 제품을 찾았습니다.
관련 제품
7개 제품을 찾았습니다.
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:France
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:France
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:85444290
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:Y-Ex
RoHS
RoHS 프탈레이트 준수:예
RoHS
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.000835
