페이지 인쇄

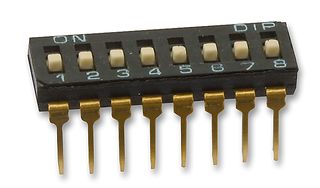

이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.
14,550 재고
더 필요하세요?
153 1-2 영업일 이내 배송(싱가폴 재고)
14397 3-4 영업일 이내 배송(영국 재고)
수량 | 가격 |
---|---|
1+ | ₩2,084 |
15+ | ₩1,923 |
100+ | ₩1,817 |
500+ | ₩1,350 |
1000+ | ₩1,282 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩2,084
부품 번호 /라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
이 번호는 주문 확인서, 청구서, 발송장, 웹 확인 이메일, 제품 라벨에 추가됩니다.
제품 정보
제조업체MULTICOMP PRO
제조업체 부품 번호MCNDI-08S
주문 코드9472185
Product RangeNDI
기술 데이터 시트
No. of Circuits8Circuits
Switch Actuator StyleSlide
Switch MountingThrough Hole
Contact ConfigurationSPST
Contact Voltage DC Max24V
Contact Current DC Max25mA
Product RangeNDI
Switch TypeDIP Unsealed
SVHCNo SVHC (17-Dec-2014)
제품 개요
The MCNDI-08S is a single-pole single-throw (SPST) 8-way low profile DIL Switch, machine insertable DIP. The MCNDI series switch has gold plated over nickel contact, gold terminal and black high temperature base/cover. Splay terminals allow for automatic insertion by IC insertion machine. Insert moulding of terminals and ultrasonic welding improve flux proofness and enable flux washing in whole by top tape sealing. Double contacts offers high reliability. Terminal plating by gold give excellent results when soldering.
- Terminal Type: Splay
- 100MΩ at 500V Insulation resistance
- 500VAC for one minute Dielectric strength
- Pitch: 2.54mm
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
기술 사양
No. of Circuits
8Circuits
Switch Mounting
Through Hole
Contact Voltage DC Max
24V
Product Range
NDI
SVHC
No SVHC (17-Dec-2014)
Switch Actuator Style
Slide
Contact Configuration
SPST
Contact Current DC Max
25mA
Switch Type
DIP Unsealed
기술 문서 (1)
MCNDI-08S의 대체 제품
3개 제품을 찾았습니다.
관련 제품
3개 제품을 찾았습니다.
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:China
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:China
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:85365019
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:예
RoHS
SVHC:No SVHC (17-Dec-2014)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.002797
