MCPE1-12708AC-S

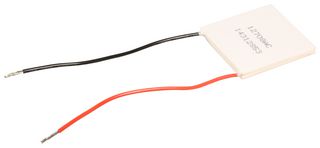

Thermoelectric Peltier Cooler Module, Single Stage, 77.1 W, 8.5 A, 40 mm x 40 mm x 3.45 mm

이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.

59 재고

더 필요하세요?

59 3-4 영업일 이내 배송(영국 재고)

가격기준Each

주문 최소수량: 1

주문 배수수량: 1

₩49,768

라인 메모 추가

라인 메모

이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,

제조업체	MULTICOMP PRO
제조업체 부품 번호	MCPE1-12708AC-S복사
제조업체 표준 리드 타임	14주
주문 코드	1639718
Product Range	MCPE
기술 데이터 시트	Data Sheet
No. of Stages	1 Stage
Cooling Power Pc	77.1W
Current Max @ Diff Temperature Max	8.5A
Voltage Max @ Diff Temperature Max	15.7VDC
Length	40mm
Width	40mm
Depth	3.45mm
Temperature Difference Max	70°C
Product Range	MCPE
Internal Resistance	-
Lead Wires	UL-Style 1569, Unstripped
SVHC	No SVHC (21-Jan-2025)

Miniature modules available for cooling components such as infra-red detector chips, microwave IC's, fibre-optic lasers and detectors.

Bespoke designs available
All types of modules can be bonded using heat sink bonder
Wide variety of finishes available for specific operating ranges or regimes
Our standard devices cover a wide range of pellet geometries
Single-stage modules can create systems which are effective from a few mW to few hundred Watts of cooling power
Silicone sealed for moisture protection
Multicomp products are rated 4.6 out of 5 stars
12 month limited warranty *view Terms & Conditions for details
96% of customers would recommend to a friend

No. of Stages	1 Stage
Current Max @ Diff Temperature Max	8.5A
Length	40mm
Depth	3.45mm
Product Range	MCPE
Lead Wires	UL-Style 1569, Unstripped

Cooling Power Pc	77.1W
Voltage Max @ Diff Temperature Max	15.7VDC
Width	40mm
Temperature Difference Max	70°C
Internal Resistance	-
SVHC	No SVHC (21-Jan-2025)

MCPE1-12708AC-S Data Sheet
