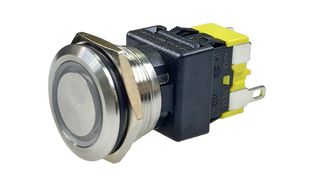

MP-1M1QG-BUA

MP-1M1QG-BUA vandal-resistant switch is designed to withstand deliberate or accidental damage, tampering, and vandalism in harsh environments. It comes with a round design and SPST configuration. This switch is commonly used in public areas, outdoor installations, industrial settings, and applications where durability and security are paramount. It provides a reliable solution for controlling electrical circuits in demanding environments by offering protection against physical damage, tampering, and environmental hazards, ensuring long-term performance and safety in critical applications.

• Momentary, single pole, anti vandal switch
• 16(4)A 250V-T125/55 rating
• Withstand voltage is 1500VAC 1minute
• Contact resistance is 20mohm initial (maximum)
• Insulation resistance is 100Mohm (minimum) (DC 500V)
• Protection type is IP65 (panel waterproof)
• Mechanical collision protection type is IK07
• White LED 200 to 250VAC illumination

애플리케이션

Industrial, Automation & Process Control, Commercial, Safety

목차

x1 Vandal resistant switch.

메모

Reliable and field-proven safety products.
