MP007724

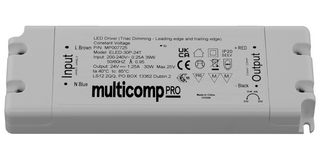

These Multicomp Pro TRIAC P Dimmable LED Drivers dim via leading and trailing edge technology. The series is available in both Constant voltage and constant current. The series starts at 30W, 60W, 100W, 150W 200W, 300W and 360W power options with all options available in 12V and 24V voltage outputs. Thats series is the optimal LED driver for all high power LED applications.

• 30W, 12V, IP20 triac dimmable LED driver
• Constant voltage/ PWM output
• Leading & trailing edge dimmable
• AC input range 200VAC to 240VAC
• Built-in active PFC function
• Efficiency up to 79%
• Short circuit/ over loading/ over current/ over temperature protections
• Full protection plastic housing easy installation
• Cooling by free air convection
• Suitable for LED lighting and moving signs
• 3 years warranty
• Working Temperature: -40°C to +70°C

애플리케이션

LED Lighting, Power Supplies, Electrical, Installations

메모

Safety Standards: EN61347-1, EN61347-2-13; EMC Emission Compliance to EN55015, EN61000-3-2,3 (greater-than 60%load)
