| 제조업체 | MULTICOMP PRO |
|---|---|
| 제조업체 부품 번호 | MP008593복사 |
| 제조업체 표준 리드 타임 | 21주 |
| 주문 코드 | 3864609 |
| Product Range | Multicomp Pro USB 3.1 Type-C to HDMI Charging Adapter |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
더 필요하세요?
| 수량 | 가격 |
|---|---|
| 1+ | ₩108,319 |
| 5+ | ₩97,049 |
| 10+ | ₩92,183 |
제품 정보
| 제조업체 | MULTICOMP PRO |
|---|---|
| 제조업체 부품 번호 | MP008593복사 |
| 제조업체 표준 리드 타임 | 21주 |
| 주문 코드 | 3864609 |
| Product Range | Multicomp Pro USB 3.1 Type-C to HDMI Charging Adapter |
| 기술 데이터 시트 | |
| Convert From | USB 3.1 Type-C Plug |
| Convert To | 2 X HDMI RCPT, 3 X USB Type A RCPT, 1 X SD Card Slot, 1 X Micro SD Card Slot, 1 X USB Type-C RCPT |
| Product Range | Multicomp Pro USB 3.1 Type-C to HDMI Charging Adapter |
| SVHC | No SVHC (21-Jan-2025) |
제품 개요

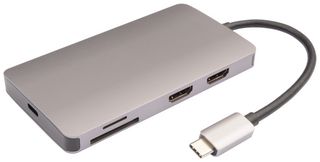

This is a Type-C 8-in-1 hub with 2 HDMI, 3 USB-A, SD/TF card slots and Type-C female port, providing an ideal solution for extending the port of Type-C or Thunderbolt 3 host (PC/Laptop/Mobile phone,etc.), especially for those host with a single Type-C port. This hub adopts the latest DP1.4 Alt mode supported IC, enabling to output HDMI video with max 4k/60Hz or dual 4k/30Hz and at the meanwhile transfer USB 3.1 data with max 5Gbps. 3 USB-A ports allow you to connect 3 USB devices simultaneously. SD/Micro SD allow to insert 2 card slots simultaneously for data transmission or for reading/writing information on the host.
- USB-A 3.0x3
- 1 USB-A port supports max 7.5W(5V/1.5A) downstream charging, 3 USB-A share max 12W (5V/2.4A) downstream charging.
- Max 5Gbps bandwidth per USB-A port
- SD/Micro SD
- Support Secure Digital v3.0 UHS-I (Ultra High Speed): SDR12 (12.5Mbyte/s)/SDR25(25Mbyte/s)/SDR50(50Mbyte/s)/DDR50(50Mbyte/s)/SDR104(104Mbyte/s)
- Allow 2 card slots to work simultaneously
- Type-C Femalex1 (for PD Charging)
- Support PD Charging 100W (20V/5A)
- Support Fast Role Swap of PD 3.0, the connected device will not get disconnected while plugging in and out PD Adapter
- 15W is dedicated to the functioning of this product, the rest power (max 85W) will be passed to charge for the host
애플리케이션
Computer Peripherals, Data / Computing, Hobby & Education, Multimedia, Office, Portable Devices
목차
x1 Main unit; x1 User Manual
메모
When connecting a DP1.4 Alt mode supported host, the max resolution of HDMI is 4k/60Hz (dual 4K/30Hz); When connecting a DP1.2 Alt mode supported host, the max resolution of HDMI is 4k/30Hz (dual 1080P/60Hz) due to bandwidth limitation.
기술 사양
| Convert From | USB 3.1 Type-C Plug |
|---|---|
| Product Range | Multicomp Pro USB 3.1 Type-C to HDMI Charging Adapter |
| Convert To | 2 X HDMI RCPT, 3 X USB Type A RCPT, 1 X SD Card Slot, 1 X Micro SD Card Slot, 1 X USB Type-C RCPT |
|---|---|
| SVHC | No SVHC (21-Jan-2025) |
기술 문서 (2)
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | China 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 85437090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | Y-Ex RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (21-Jan-2025) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .105233 |
