MP011844

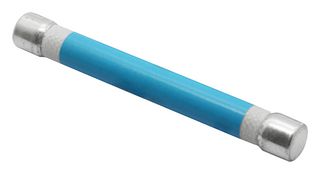

MP011844 fuse is an indispensable component in modern solar energy installations, contributing significantly to system safety and operational stability. It features a compact glass-fibre body with silver-plated caps, providing a breaking capacity of 30kA to 50kA and a rapid response time of 1-3 ms.

• Effectively manages systems up to 1500VDC
• Provides 30kA breaking capacity, with self-certified capability up to 50kA for lower currents
• Fast response time
• Meets critical industry standards UL 248-19 and IEC 60269-6, ensuring compatibility and safety
• Produced under the IATF 16949 quality system, guaranteeing high manufacturing standards
• Applications include PV combiner / junction boxes, Inverters and Battery charge controllers
• The fuse body is made of glass-fiber.
• The terminals cap is composed of Copper T2
• The element used in this fuse is silver (Ag), and the filler material is silica sand

애플리케이션

Industrial, Automotive Systems, Safety, General Purposes, Power Management, Electrical and Electronics
