| 제조업체 | MULTICOMP PRO |
|---|---|
| 제조업체 부품 번호 | MP013554복사 |
| 제조업체 표준 리드 타임 | 6주 |
| 주문 코드 | 4291733 |
| Product Range | Pi-Box Pro 5 |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
더 필요하세요?
| 수량 | 가격 |
|---|---|
| 1+ | ₩78,945 |
| 3+ | ₩77,264 |
| 15+ | ₩75,618 |
제품 정보
| 제조업체 | MULTICOMP PRO |
|---|---|
| 제조업체 부품 번호 | MP013554복사 |
| 제조업체 표준 리드 타임 | 6주 |
| 주문 코드 | 4291733 |
| Product Range | Pi-Box Pro 5 |
| 기술 데이터 시트 | |
| For Use With | Raspberry Pi 5 Boards |
| External Height | 30mm |
| External Width | 108.5mm |
| External Depth | 91mm |
| Enclosure / Case Material | Aluminium |
| Product Range | Pi-Box Pro 5 |
| SVHC | No SVHC (17-Jan-2023) |
제품 개요

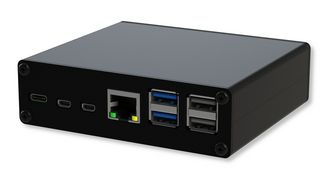

MP013554 is a Pi-Box Pro 5+ is a rugged industrial enclosure kit for the Raspberry Pi5. By utilizing our Micro HDMI Pi5 extender board we can turn the power and Micro HDMI connectors through 90° so they are on the same plane as the Ethernet and USB connectors. The rear panel is made from 3mm acrylic and allows communication via Bluetooth and Wi-Fi signals from the Pi5. The standard version allows access to the SD Card from the assembled enclosure. Pi-Box Pro 5+ has the same internal kit as the Pi-Box Pro 5 but is housed in the Combi Case extrusion. Ideal for those who wish to have a rugged aluminum case but not an industrial look.
- Rugged industrial enclosure kit
- Micro HDMI Pi5 extender board
- Rear panel is made from 3mm acrylic
- Allows for access to the SD Card from the assembled enclosure
애플리케이션
Computer Hardware, Education, Hobby & Education, Consumer Electronics, Industrial, IIoT (Industrial Internet of Things), Domestic, Public, Automotive Systems
목차
x8 M3x10 Taptite Screws; x14 M2.5x5 Screws; x4 12mm Standoffs; x3 8mm Standoffs; x1 Aluminium End Plate; x1 HDMI Extender PCB; x1 Aluminium Carrier Plate; x1 Aluminium Extrusion; x1 Acrylic End Plate.
메모
With the release of the Raspberry Pi5, the temperature of the processor under 100% usage has become an issue. As a solution, we offer an Active Cooling Fan Kit (SC1148) which combines a large metal heatsink with a variable-speed blower.
기술 사양
| For Use With | Raspberry Pi 5 Boards |
|---|---|
| External Width | 108.5mm |
| Enclosure / Case Material | Aluminium |
| SVHC | No SVHC (17-Jan-2023) |
| External Height | 30mm |
|---|---|
| External Depth | 91mm |
| Product Range | Pi-Box Pro 5 |
관련 제품
1개 제품을 찾았습니다.
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | Great Britain 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 85389099 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (17-Jan-2023) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .25 |
