MP013707

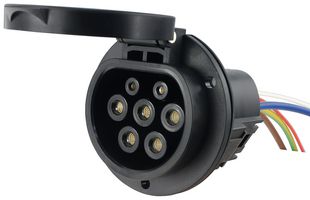

The MULTICOMP PRO MP013707 is an IEC 62196 2 compliant EV charging connector receptacle designed for three phase AC electric vehicle charging applications. Featuring a 7 position receptacle interface and rated at 32A and up to 600V AC, this connector is suitable for integration into EV charging stations and infrastructure requiring robust and reliable multi phase power and signal connectivity. The connector uses crimp termination and is supplied with a 300mm cable length, enabling secure electrical connections and ease of installation. With an IP44 protection rating, it resists solid objects and splashing water when installed in suitable enclosures. As part of the MP EV Connectivity range, the MP013707 provides a cost effective, standards compliant solution for EV charging, automotive, and energy applications.

• Suitable for EV charging infrastructure, automotive, and energy applications
• IEC 62196 2 EV charging connector receptacle for AC charging systems
• 7 Position contact configuration supporting power and signal connections
• Three phase charging support, rated at 32A and up to 600V AC
• Crimp termination for secure and efficient electrical connection
• Supplied with 300mm cable length to simplify installation and integration
• IP44 protection rating for use in protected outdoor or enclosure mounted environments
• Supports Level 3 AC EV charging applications
• RoHS compliant and declared free of SVHCs
