MP720025 EU-UK

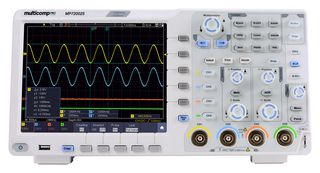

The Multicomp Pro MP720025 is an 8-bit, 4 channel 100MHz touchscreen digital oscillosope. Featuring built-in frequency counter and decoder, 40M record lengths with max 45,000 wfms/s waveform refresh rates, low background noise, SCPI and LabVIEW support, and multi-interface integration.

• 8" high-resolution touch-screen LCD screen (800x600)
• 45,000 frame/sec waveform refresh rate, multi-level gray scale and colour temperature display
• Horizonal rate - 2ns/div - 1000s/div, step by 1-2-5
• Sample rate/real-time accuracy of ±2.5 ppm
• DC, AC and GND input couplings
• 1mV/div - 10V/div vertical sensitivity (at input)
• Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232 and CAN trigger types
• I2C, SPI, RS232 and CAN bus decoding
• Auto, normal and single trigger modes
• USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN and VGA communication interfaces
• Dimensions - 340 x 177 x 90mm

목차

Digital Storage Oscilloscope, 4x Probes, Probe Manual, Accessories Bag, USB Type B Cable, Operating Instructions, CD-ROM, UK & EU Power Cords

메모

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
