MP780768
Non-Contact AC Voltage Detector, IP67, 24V to 1kV, LED, Buzzer, Vibration Mode, CAT IV 1000V

| 제조업체 | MULTICOMP PRO |
|---|---|
| 제조업체 부품 번호 | MP780768복사 |
| 제조업체 표준 리드 타임 | 19주 |
| 주문 코드 | 3676977 |
| Product Range | Multicomp Pro Non-Contact Voltage Detectors |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
더 필요하세요?
| 수량 | 가격 |
|---|---|
| 1+ | ₩29,768 |
| 3+ | ₩24,133 |
제품 정보
| 제조업체 | MULTICOMP PRO |
|---|---|
| 제조업체 부품 번호 | MP780768복사 |
| 제조업체 표준 리드 타임 | 19주 |
| 주문 코드 | 3676977 |
| Product Range | Multicomp Pro Non-Contact Voltage Detectors |
| 기술 데이터 시트 | |
| Voltage Measuring Range AC | 24V to 1kV |
| Meter Display Type | LED |
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 40°C |
| Product Range | Multicomp Pro Non-Contact Voltage Detectors |
| Plug Type | - |
| SVHC | To Be Advised |
제품 개요

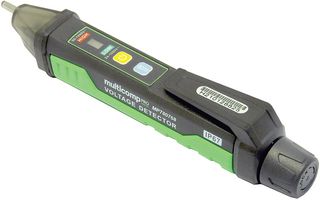

MP780768 from Multicomp Pro is a professional grade voltage detector, designed with IP67 dust & water resistance and drop proof up to 2 metres. This durable device is suitable for use in harsh environments and includes a unique vibration mode. Applications include (low voltage mode - <lt/>90V) audio systems, arc welding machines, underground mining lighting, cables with a thick insulation layer and other weaker electromagnetic AC signals, (high voltage mode – 90-1000V) urban electric supply and three-phase systems, such as power distribution units, electrical panels and electrical appliances.
- AC voltage (low): 24V~1000V
- AC voltage (high): 90V~1000V
- Frequency range: 50/60Hz
- Vibration mode
- Built-in flashlight
- Audible (buzzer) and visual (LED) indication
- Auto power-off
- Low voltage indication
- Double injection moulding
- 2m drop test
- 1.5V battery (R03) x 2
- Device dimensions: 160.5mm x 21.5mm x 25mm
- Device weight: 72g
- IP Rating: IP67
- Safety Class: CAT IV 1000V
애플리케이션
Test & Measurement, Audio, Commercial, Control Panels, Electrical, Low Voltage, Industrial & Manufacturing
목차
x1 Non-Contact AC Voltage Detector; x2 1.5V AAA Battery (R03)
메모
3 Years Manufacturer Warranty. Buzzer and sensing LED frequencies increases when detector gets closer to the test object
기술 사양
| Voltage Measuring Range AC | 24V to 1kV |
|---|---|
| Operating Temperature Min | 0°C |
| Product Range | Multicomp Pro Non-Contact Voltage Detectors |
| SVHC | To Be Advised |
| Meter Display Type | LED |
|---|---|
| Operating Temperature Max | 40°C |
| Plug Type | - |
기술 문서 (1)
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | China 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 90308900 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | To Be Advised |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .07 |
