SPC15406

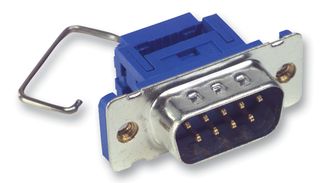

The SPC15406 is a 9-way DE D-sub IDC Plug with gold plated stamped brass contacts and PBT + glass fibre reinforced insulator as per UL94V-0 standard. This male connector has IDC/IDT termination and it accepts 26 to 28AWG wire gauge. The D-sub Connector allows highly reliable mass termination of standard 0.05-inch pitch round conductor flat ribbon cable. Gas-tight junction with each conductor at 4 places, internal transition from standard 0.055-inch contact spacing which allows termination of standard 0.05-inch ribbon cable. No special cable preparation is required and mating area has duplex plating.

• 1A Rated current
• 15mΩ Maximum contact resistance
• 1000MΩ Minimum insulation resistance
• -55 to +105°C Operating temperature range
• Multicomp products are rated 4.6 out of 5 stars
• 12 month limited warranty *view Terms & Conditions for details
• 96% of customers would recommend to a friend

애플리케이션

Communications & Networking
