더 필요하세요?
수량 | 가격 |
---|---|
1+ | ₩2,049 |
100+ | ₩1,629 |
250+ | ₩1,435 |
500+ | ₩1,368 |
제품 정보
제품 개요

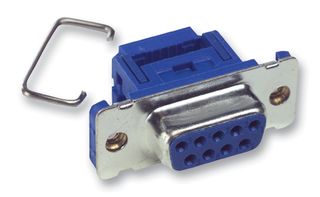

The SPC15417 is a 9-way DE D-sub IDC Receptacle with gold plated stamped brass contacts and PBT + glass fibre reinforced insulator as per UL94V-0 standard. This female connector has IDC/IDT termination and it accepts 26 to 28AWG wire gauge. The D-sub socket connector allow highly reliable mass termination of standard 0.05-inch pitch round conductor flat ribbon cable. Gas-tight junction with each conductor at 4 places, internal transition from standard 0.055-inch contact spacing which allows termination of standard 0.05-inch ribbon cable. No special cable preparation is required and mating area has duplex plating.
- 1A Rated current
- 15mΩ Maximum contact resistance
- 1000MΩ Minimum insulation resistance
- -55 to +105°C Operating temperature range
- Multicomp products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
애플리케이션
Communications & Networking
기술 사양
Standard
-
DE
Cable Mount
Gold Plated Contacts
No SVHC (16-Jul-2019)
Receptacle
9Contacts
Crimp
Brass
Steel Body
기술 문서 (1)
관련 제품
4개 제품을 찾았습니다.
법률 및 환경
최종후의 중요 제조 공정이 이루어진 국가원산지:Taiwan
최종후의 중요 제조 공정이 이루어진 국가
RoHS
RoHS
제품 준수 증명서
