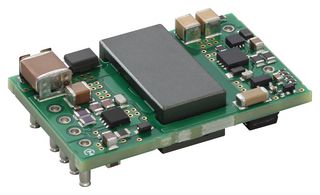

이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.
제품 정보
제조업체 부품 번호MYBSP0122BABFT
주문 코드3501748
Product RangeMYBSP Series
기술 데이터 시트
Power Supply ApplicationsITE
DC / DC Converter TypeModule
Input Ratio2:1
Output Power Max25.5W
No. of Outputs1 Output
Output Voltage - Output 112V
Output Current - Output 12.125A
Output Voltage - Output 2-
Output Current - Output 2-
Output Regulation-
Isolation Voltage2.25kV
Input Voltage DC Nom48V
DC / DC Converter Output TypeFixed
Width35.5mm
Height10.55mm
Depth22.4mm
Input Voltage DC Min37V
Input Voltage DC Max57V
Product RangeMYBSP Series
SVHCNo SVHC (07-Nov-2024)
제품 개요
MYBSP0122BABFT is an isolated DC-DC converter with IEEE 802.3at Class 4 PoE PD. Specific applications include consumer equipment, industrial equipment.
- 25.5W maximum output power
- 37V to 57V input voltage range
- 12V typical output voltage
- 2250V isolation voltage
- 92.5% efficiency
- 35.5mm width, 22.4mm length, 10.55mm thickness
- Operating temperature range from -40°C to 85°C
- 2.125A output current
- Support type2 PSE indicator, support adapter O-ring
경고
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
기술 사양
Power Supply Applications
ITE
Input Ratio
2:1
No. of Outputs
1 Output
Output Current - Output 1
2.125A
Output Current - Output 2
-
Isolation Voltage
2.25kV
DC / DC Converter Output Type
Fixed
Height
10.55mm
Input Voltage DC Min
37V
Product Range
MYBSP Series
DC / DC Converter Type
Module
Output Power Max
25.5W
Output Voltage - Output 1
12V
Output Voltage - Output 2
-
Output Regulation
-
Input Voltage DC Nom
48V
Width
35.5mm
Depth
22.4mm
Input Voltage DC Max
57V
SVHC
No SVHC (07-Nov-2024)
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:Japan
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:Japan
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:85044095
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:예
RoHS
SVHC:No SVHC (07-Nov-2024)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.0135
