196203-01

196203-01 is an USB-6218 isolated, multifunction DAQ device. It offers analogue I/O, digital input, digital output, and two 32bit counters. For improved accuracy and safety, the USB-6218 provides 60 V, CAT I isolation. It also features signal streaming technology that gives you DMA-like bidirectional high-speed streaming of data across USB. The device is ideal for test, control, and design applications including portable data logging, field monitoring, embedded OEM, in-vehicle data acquisition, and academic. The USB-6218 features a lightweight mechanical enclosure and is bus powered for easy portability. The included NI-DAQmx driver and configuration utility simplify configuration and measurements.

• 32 channels single ended/16 channels differential ended
• 250kS/s maximum update rate and sample rate
• Two counters/timers
• 2690μV analogue input absolute accuracy

메모

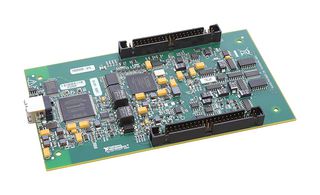

Board only (no enclosure).
