FRDM-K32L3A6

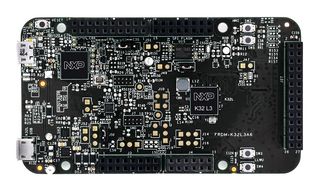

FRDM-K32L3A6 is a freedom development platform for K32 L3 MCUs. This development board consists of the K32L3A6 device with a 32-Mbit external serial flash, FXOS8700 accelerometer/magnetometer, visible light sensor, SDHC circuit, general purpose LEDs, and general purpose push buttons in the popular Freedom board form-factor.

• Full-speed USB module with device capability and built-in transceiver
• SDHC card slot supported
• 4MB serial flash memory with SPI interface
• Six-axis accelerometer with integrated magnetometer
• Phototransistor connected to the ADC input channel for evaluating the ADC
• One RGB LED and one red LED controlled by GPIO
• Four selectable power sources including USB connector
• DC-DC converter with Buck and Bypass operation modes
• Jumpers and trace cuts enable accurate core current measurements

목차

One FRDM-K32L3A6 development board, One USB cable.
