FRDM33772BTPLEVB
Evaluation Board, MC33772 Battery Cell Controller, 6-Channel, Li-Ion Isolated Daisy Chain Comms

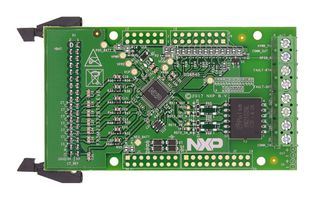

이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.

| 제조업체 | NXP |
|---|---|
| 제조업체 부품 번호 | FRDM33772BTPLEVB복사 |
| 제조업체 표준 리드 타임 | 16주 |
| 주문 코드 | 2889699 |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
주문 가능
제조업체 표준 리드 타임: 16주
입고 시 알림 요청
| 수량 | 가격 |
|---|---|
| 1+ | ₩188,760 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩188,760
라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
제품 정보
| 제조업체 | NXP |
|---|---|
| 제조업체 부품 번호 | FRDM33772BTPLEVB복사 |
| 제조업체 표준 리드 타임 | 16주 |
| 주문 코드 | 2889699 |
| 기술 데이터 시트 | |
| Kit Application Type | Power Management - Battery |
| Application Sub Type | Li-Ion Battery Cell Controller |
| Silicon Core Number | MC33772B |
| Silicon Manufacturer | NXP |
| Kit Contents | Eval Board MC33772B |
| Product Range | - |
| SVHC | No SVHC (27-Jun-2024) |
제품 개요
FRDM33772BSPIEVB evaluation board features MC33772, a 6-channel battery cell controller for automotive and industrial Li-ion battery applications. It supports cell voltage measurement, passive cell balancing, GPIOs, external EEPROM and fault detection pin report. The kit is designed to support customer development and evaluation. The device can be connected to NXP 6-cell battery emulator or a customer Li-ion battery module with 3~6 logic cells in series. The battery cell information is transferred to the microcontroller unit (MCU) through SPI interface.
- LED indicator for operation mode
- Cell-balancing resistors and integrated drivers
- Cell sense input with low pass filter
- Interface I2C link to an external local EEPROM to store user-defined calibration parameters
- Fault detection pin report
목차
Evaluation board, Quick start guide.
기술 사양
| Kit Application Type | Power Management - Battery |
|---|---|
| Silicon Core Number | MC33772B |
| Kit Contents | Eval Board MC33772B |
| SVHC | No SVHC (27-Jun-2024) |
| Application Sub Type | Li-Ion Battery Cell Controller |
|---|---|
| Silicon Manufacturer | NXP |
| Product Range | - |
기술 문서 (1)
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | United States 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (27-Jun-2024) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .025 |
