| 제조업체 | PANDUIT |
|---|---|
| 제조업체 부품 번호 | C1WH6복사 |
| 제조업체 표준 리드 타임 | 10주 |
| 주문 코드 | 3281921 |
| Product Range | Type C Series |
| AKA | GTIN UPC EAN: 07498323042 |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
455 재고
더 필요하세요?
5 1-2 영업일 이내 배송(싱가폴 재고)
450 6-8 영업일 이내 배송(미국 재고)
| 수량 | 가격 |
|---|---|
| 1+ | ₩3,867 |
| 10+ | ₩2,265 |
| 100+ | ₩2,099 |
| 250+ | ₩2,044 |
| 500+ | ₩2,003 |
| 1000+ | ₩1,947 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩3,867
라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
제품 정보
| 제조업체 | PANDUIT |
|---|---|
| 제조업체 부품 번호 | C1WH6복사 |
| 제조업체 표준 리드 타임 | 10주 |
| 주문 코드 | 3281921 |
| Product Range | Type C Series |
| AKA | GTIN UPC EAN: 07498323042 |
| 기술 데이터 시트 | |
| Raceway / Duct Material | PVC (Polyvinylchloride) |
| Raceway / Duct Colour | White |
| External Length | 1.8m |
| External Width | 31.8mm |
| External Height | 8.9mm |
| Product Range | Type C Series |
| SVHC | No SVHC (04-Feb-2026) |
제품 개요

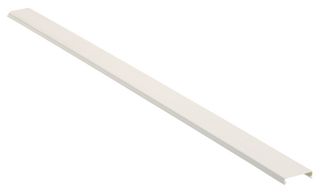

PVC flush wiring duct cover features a non-slip, liner to prevent cover slide. Designed with the user in mind, the cover is easy to install and remove.
- General-purpose lead-free PVC material is suitable for use in indoor applications
- UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C)
- Cover for wiring duct application
- For use with Type G, Type F, Type D and Type FS duct base
- UL recognized; flammability ratings: UL94 V-0; CSA certified; CE compliant standards
- Cover with non-slip liner to prevent cover slide, flush cover design
- Designed for easy install and removal
- Snap-on mount method
기술 사양
| Raceway / Duct Material | PVC (Polyvinylchloride) |
|---|---|
| External Length | 1.8m |
| External Height | 8.9mm |
| SVHC | No SVHC (04-Feb-2026) |
| Raceway / Duct Colour | White |
|---|---|
| External Width | 31.8mm |
| Product Range | Type C Series |
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | United States 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 85389099 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .03289 |
