제품 정보
| 제조업체 | PARALLAX |
|---|---|
| 제조업체 부품 번호 | 32300복사 |
| 주문 코드 | 1263885 |
| 기술 데이터 시트 |
제품 개요
The 32300 is a Propeller Starter Kit, everything you need to program a Propeller chip except for the PC and power supply. Parallax recommends a 7.5V 1A power supply (#750-00009). The Propeller demo board, Rev C. visibly demonstrates the Propeller’s varied capabilities in a compact and fun platform. You can use it to learn Propeller programming and then develop full-blown applications which generate video and sound and utilize mice and keyboards. All the requisite power supply and USB loading circuitry is provided for you. Eight unused I/O pins are available for experimentation.
애플리케이션
Embedded Design & Development
목차

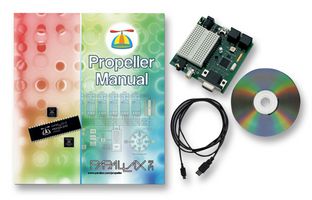

Propeller manual, Propeller demo board and USB A to Mini B retractable cable.
메모
A Propeller P8X32A-Q44 chip is mounted to the board. All you need to do is plug it in to start programming.
기술 문서 (1)
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | United States 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 추후 공고함 |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | 1 |
