TA281

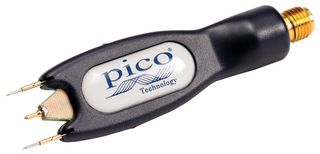

The PICOCONNECT 926 from Pico Technology is a PicoConnect 900 series, AC coupled, 9GHz, gigabit passive probe. This low invasive, high frequency passive probe is designed for microwave applications which delivers unprecedented performance and flexibility at a low price. It has pollution degree 2 approval, high speed logic voltage applications, class leading uncorrected pulse/eye response and pulse/eye disturbance. The probe is suitable for Ethernet, USB3, HDMI, SATA, PCI, LVD and other high speed cabled, chip to-chip and backplane interfaces. It features slim, fingertip design for accurate and steady probing or solder-in at fine scale. This probe can be used with any oscilloscope that supports standard 50 ohm probes including 12GHz PicoScope 9200 series, 20GHz PicoScope 9300 series and PicoScope 6000 series real time oscilloscopes. It has EN61010-031:2002+A1 2008 safety requirements for hand held probe assemblies, electrical measurement and test.

• High dynamic range, low noise, implicit linearity and long term flatness of a passive design
• Interchangeable SMA probe heads at division ratios of 5:1, 18Gb/s maximum usable data rate
• 6Gb/s maximum usable data rate (3rd harmonic) and 3.6Gb/s (5th)
• 220 ohm probe tip impedance (nominal), 0.4pF probe tip capacitance (maximum)
• Less than ±0.25dB (±2.9%) accuracy for line Z0 = 36 to 60 ohm and less than 50ps transition time
• Continuous voltage of 5VRMS, altitude range up to 2000m and flatness (±0.5dB) of DC to 2GHz
• Dimension of probe head is 68mm x 19mm x 11mm, nominal probe tip pitch of 5mm and weight is 5g
• 187ohm output impedance (for test node impedance 50 ohm), 1.6nV/√Hz additive voltage noise at 23°C
• Tolerant of high input slew rate, hardened to EM discharge, no saturation & recovery characteristic
• Operating temperature range from 0 to 50°C, operating humidity range from 5 to 80% RH non condensing

애플리케이션

Test & Measurement

목차

PicoConnect 926 probe head, Precision 60cm 085 low loss cable, Quick start guide, Set of replacement gold plated probe and ground tips, Two coils of solder-in gold plated wire, Storage and carry case.
