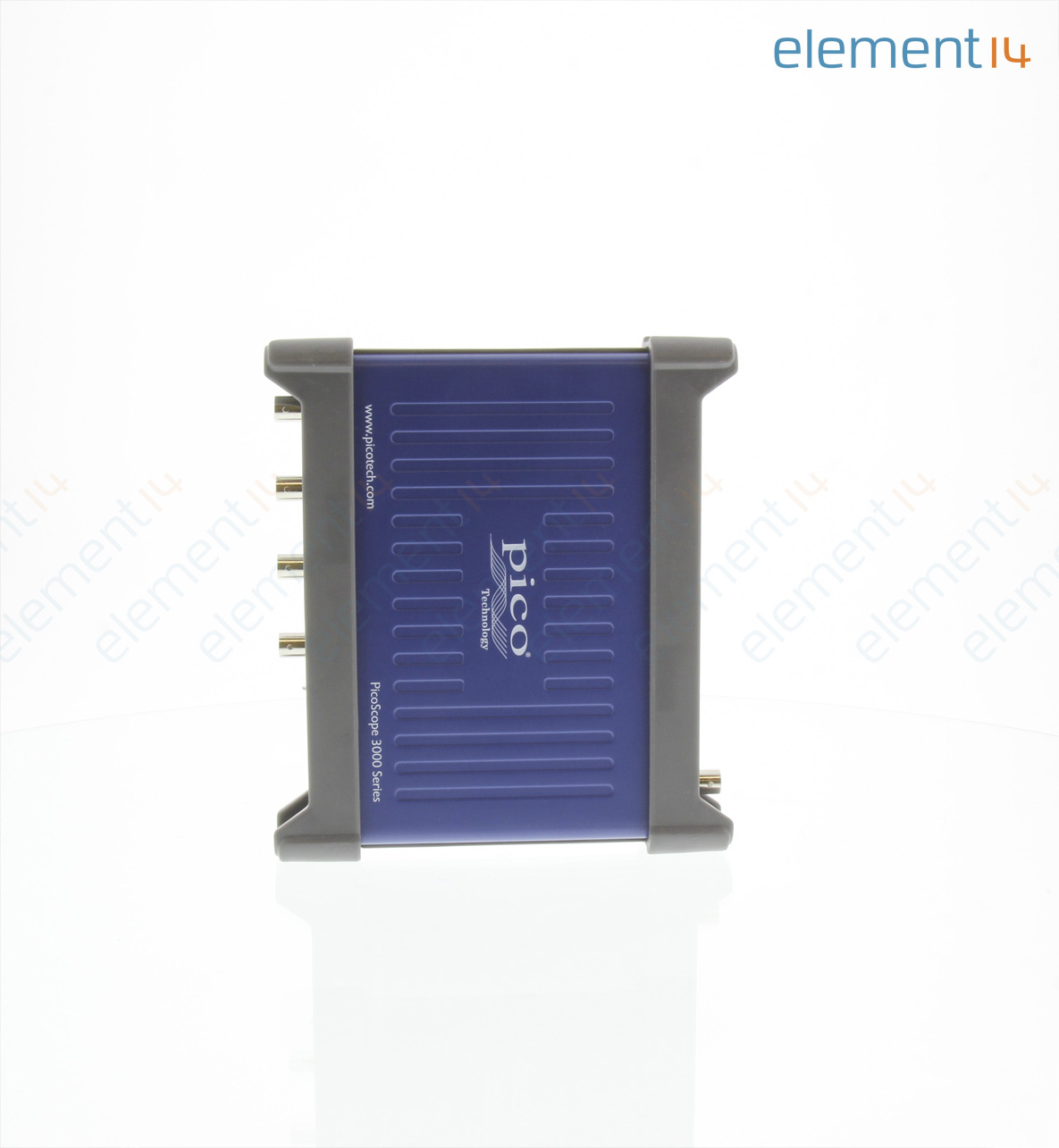

PICOSCOPE 3403D MSO

The PICOSCOPE 3403D MSO is a 4-analogue channel 3000-series USB-powered Mixed Signal Oscilloscopes are small, light and portable and can easily slip into a laptop bag with range of high-performance specifications. Built-in function/arbitrary waveform generator with 50MHz analogue bandwidth.

• 64MS Buffer memory
• 100000 Waveforms per second
• USB 3.0 connected and powered
• Serial decoding and mask testing as standard
• 0 to 40°C Operating temperature range
• Pollution degree 2

애플리케이션

Test & Measurement, Embedded Design & Development, Maintenance & Repair, Hobby & Education

목차

PicoScope 3403D MSO, TA375 One 100 MHz Passive Probe Per Channel 1:1, 10:1 Switchable, BNC, TA136 Digital Interface Cable, TA139 Digital Test Clips 8 x Red, 2 x Black, Pack of 10, TA155 USB3 Cable, 1.8m, PS011 AC Power Adaptor 5V, Quick Start Guide

메모

Software and user manuals available from: https://www.picotech.com/downloads. In addition, we have calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details.
