PICOSCOPE 3417E FULL KIT
PC USB Oscilloscope, PicoScope 3000E Series, 4 Channel, 350 MHz, 5 GSPS, 1.2 ns

| 제조업체 | PICO TECHNOLOGY |
|---|---|
| 제조업체 부품 번호 | PICOSCOPE 3417E FULL KIT복사 |
| 제조업체 표준 리드 타임 | 7주 |
| 주문 코드 | 4420414 |
| Product Range | PicoScope 3000E Series |
| AKA | PQ347 |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
2 지금 제품을 예약하실 수 있습니다
| 수량 | 가격 |
|---|---|
| 1+ | ₩4,940,442 |
제품 정보
| 제조업체 | PICO TECHNOLOGY |
|---|---|
| 제조업체 부품 번호 | PICOSCOPE 3417E FULL KIT복사 |
| 제조업체 표준 리드 타임 | 7주 |
| 주문 코드 | 4420414 |
| Product Range | PicoScope 3000E Series |
| AKA | PQ347 |
| 기술 데이터 시트 | |
| Product Range | PicoScope 3000E Series |
| Scope Channels | 4 Channel |
| Bandwidth | 350MHz |
| Sampling Rate | 5GSPS |
| Display Memory Depth | - |
| Calculated Rise Time | 1.2ns |
| Kit Contents | Osc, 4x TA536 Probes, TA532 USB-C to C, TA534 USB-A to C Cable, PS017 USB-C Power Supply, User Guide |
| Manufacturer Warranty | 5 Years |
| Plug Type | AU, EU, UK, US |
| SVHC | No SVHC (04-Feb-2026) |
제품 개요
PQ347 is a PicoScope 3417E kit. 3417E is a 3000E Series, 350MHz, 4 channel, 5GS/s USB-powered PC oscilloscope which are small, light, portable and provide high-performance specifications ideal for engineers working on advanced electronics and diverse embedded system technologies, either in the laboratory or on the move. Supported by the advanced PicoScope 7 Test and Measurement software, the PicoScope 3000E Series enables the rapid cost-effective debug and performance validation of complex analogue and power electronic designs. It also offers an ideal package for many other applications including embedded systems design, research, test, education, service and repair.
- 8 to 10bit vertical resolution
- 2GS (8-bit mode) memory
- 1.2ns rise time
- Function/arbitrary waveform generator included
- 40 serial protocol decoders included as standard
- Segmented memory, persistence and fast waveform updates
- Advanced math, measurements, masks and digital triggering
- PicoScope 7 for Windows®, Mac® & Linux® with free updates, support for LabView®, MATLAB®
- Powered from single USB Type-C 3 A port or from USB port plus external Type-C PSU (5V 3A)
- Dimension is 221 x 173 x 30 mm, 5-year warranty
목차

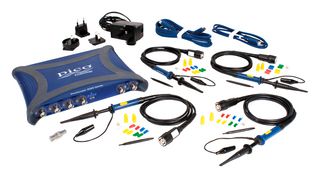

PicoScope 3000E Series oscilloscope, TA532 USB-C to USB-C cable 1.8m, TA534 USB-A to USB-C cable 0.9m, 4 x TA536 350 MHz 1:1/10:1 probes, 1 x TA537 5 mm probe to BNC adaptor, PS017 USB-C power supply with UK, EU, US and AUS plug tops, User's Guide.
기술 사양
| Product Range | PicoScope 3000E Series |
|---|---|
| Bandwidth | 350MHz |
| Display Memory Depth | - |
| Kit Contents | Osc, 4x TA536 Probes, TA532 USB-C to C, TA534 USB-A to C Cable, PS017 USB-C Power Supply, User Guide |
| Plug Type | AU, EU, UK, US |
| Scope Channels | 4 Channel |
|---|---|
| Sampling Rate | 5GSPS |
| Calculated Rise Time | 1.2ns |
| Manufacturer Warranty | 5 Years |
| SVHC | No SVHC (04-Feb-2026) |
기술 문서 (1)
관련 제품
1개 제품을 찾았습니다.
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | Great Britain 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 90309000 |
| US ECCN: | 3A992.g |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 추후 공고함 |
| SVHC: | No SVHC (04-Feb-2026) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | 1.51 |
