페이지 인쇄

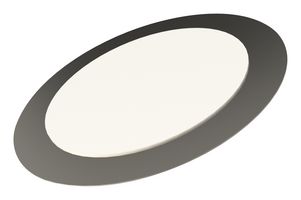

이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.
600 재고
더 필요하세요?
600 3-4 영업일 이내 배송(영국 재고)
수량 | 가격 |
---|---|
1+ | ₩3,645 |
10+ | ₩2,977 |
50+ | ₩2,927 |
100+ | ₩2,877 |
200+ | ₩2,827 |
600+ | ₩2,781 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩3,645
부품 번호 /라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
이 번호는 주문 확인서, 청구서, 발송장, 웹 확인 이메일, 제품 라벨에 추가됩니다.
제품 정보
제조업체PUI AUDIO
제조업체 부품 번호ABLF2040A
주문 코드4460831
기술 데이터 시트
Transducer FunctionBender
Element TypePiezo
Resonant Frequency4kHz
Resonant Resistance500ohm
Capacitance0.03µF
External Diameter0.21mm
External Height20mm
Product Range-
SVHCNo SVHC (21-Jan-2025)
제품 개요
ABLF2040A is a piezoelectric bender.
- Round shape
- Alloy plate material
- 4KHz resonant frequency
- 30000pF ±30% capacitance at 120Hz
- 30Vp-p max input voltage
- 500 ohm maximum impedance
- Standard temp grade
- 0.5KHz tolerance, 30% tolerance
- Operating temperature range from 0.00°C to 70.00°C
- Dimension is 0.21 x 20 x 20mm (H x W x L)
경고
Do not apply a DC current to the product, otherwise, silver migration may occur, which will lower the insulation resistance and cause the product to stop functioning.
메모
When operating the product outdoors, protect it from moisture to ensure normal operation.
기술 사양
Transducer Function
Bender
Resonant Frequency
4kHz
Capacitance
0.03µF
External Height
20mm
SVHC
No SVHC (21-Jan-2025)
Element Type
Piezo
Resonant Resistance
500ohm
External Diameter
0.21mm
Product Range
-
기술 문서 (1)
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:Japan
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:Japan
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:85318040
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:추후 공고함
SVHC:No SVHC (21-Jan-2025)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.01
