제품 정보
제조업체RASPBERRY-PI
제조업체 부품 번호SC0368
주문 코드4527517
기술 데이터 시트
Add-On-Card & Module TypeRaspberry Pi Audio DAC+ HAT
For Use WithRaspberry Pi Computer w/40-Pin GPIO Header
Product Range-
SVHCNo SVHC (27-Jun-2024)
제품 개요

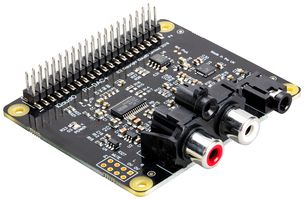

SC0368 is a Raspberry Pi DAC+ high-performance audio HAT compatible with any Raspberry Pi computer that has a 40-pin GPIO header. With the Texas Instruments PCM5122, it delivers stereo analogue audio to a pair of phono (RCA) connectors. It does not require external power, and connects directly to Raspberry Pi’s GPIO header with no need for soldering or cables.
- 58mm x 65mm form factor
- Power LED
- Analogue audio out (0-2VRMS): panel-mount stereo phono(RCA) socket w/ MUTE signal(headphone detect)
- Dedicated headphone amplifier, output via 3.5mm panel mounted barrel socket
- HAT EEPROM write-enabled
- Operating temperature range from 0°C to 50°C
기술 사양
Add-On-Card & Module Type
Raspberry Pi Audio DAC+ HAT
Product Range
-
For Use With
Raspberry Pi Computer w/40-Pin GPIO Header
SVHC
No SVHC (27-Jun-2024)
기술 문서 (1)
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:Great Britain
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:Great Britain
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:84733020
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:예
RoHS
SVHC:No SVHC (27-Jun-2024)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.058
