제품 정보
제조업체RASPBERRY-PI
제조업체 부품 번호SC0370
주문 코드4527519
기술 데이터 시트
Add-On-Card & Module TypeRaspberry Pi Audio DIGIAMP+ HAT
For Use WithRaspberry Pi Computer w/40-Pin GPIO Header
Product Range-
SVHCNo SVHC (27-Jun-2024)
제품 개요

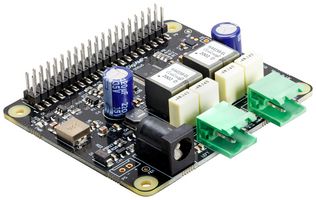

SC0370 is a Raspberry Pi DigiAMP+ high-performance audio HAT and is compatible with any Raspberry Pi computer that has a 40-pin GPIO header. With the Texas Instruments TAS5756M 24bit 192KHz stereo amplifier, it delivers a direct connection to passive stereo speakers at up to 35 Watts per channel with variable output. It is powered by an external 12 to 24V DC power supply, and connects directly to Raspberry Pi’s GPIO header, providing power to the Raspberry Pi itself. DigiAMP+ is ideal for use in Raspberry Pi-based hi-fi systems.
- 58mm x 65mm form factor
- Power LED
- Alternative power input for hard-wired installations via P5
- 40-pin pass-through GPIO header
- HAT EEPROM write-enabled
- 2 x 35W passive stereo speakers with variable output via panel-mounted screw terminals
- Operating temperature range from 0°C to 50°C
기술 사양
Add-On-Card & Module Type
Raspberry Pi Audio DIGIAMP+ HAT
Product Range
-
For Use With
Raspberry Pi Computer w/40-Pin GPIO Header
SVHC
No SVHC (27-Jun-2024)
기술 문서 (1)
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:Great Britain
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:Great Britain
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:84733020
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:예
RoHS
SVHC:No SVHC (27-Jun-2024)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.058
