SC1635

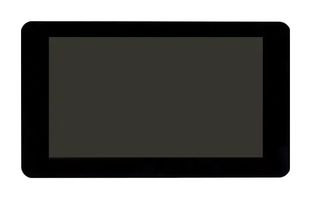

The Touch Display 2 is a 7" portrait display designed for the Raspberry Pi and is ideally suited for interactive projects such as entertainment systems and information displays. With the latest Pi OS, this high resolution screen supports up to five-finger touch and an onscreen keyboard allowing for full functionality without additional peripherals. The display only requires two connections; power from the GPIO port and a ribbon cable that connects to the DSI port on the Raspberry Pi computer (except Pi Zero models)

• 7" Portrait-style touchscreen for all Raspberry Pi models (except Pi Zero models)
• True multi-touch capacitive display supports up to five-finger simultaneous touch control
• High resolution, 24-bit 720x1280 pixel display
• Active display area: 155x88mm
• Anti-glare TFT LCD panel
• Dimensions: 189.32x120.24mm

애플리케이션

Consumer Electronics, Embedded Design & Development, Hobby & Education, Multimedia, Portable Devices

목차

Touch Display 2, standard size ribbon cable (original Pi models), mini ribbon cable (for Pi 5), power cable and screws

경고

Note: The Touch Display 2 is not compatible with display housings for the original official Touchscreen.

메모

Please use RPI O/S version 6.6 or higher with Raspberry PI Touch Display 2
