| 제조업체 | TE CONNECTIVITY - RAYCHEM |
|---|---|
| 제조업체 부품 번호 | RPS-16-10/2.0-9복사 |
| 제조업체 표준 리드 타임 | 6주 |
| 주문 코드 | 589901 |
| Product Range | RPS Series |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
22 재고
1,750 지금 제품을 예약하실 수 있습니다
22 3-4 영업일 이내 배송(영국 재고)
| 수량 | 가격 |
|---|---|
| 1+ | ₩219,744 |
| 5+ | ₩217,696 |
| 10+ | ₩215,648 |
| 25+ | ₩213,599 |
| 50+ | ₩204,819 |
| 100+ | ₩200,723 |
가격기준Pack of 250
주문 최소수량: 1
주문 배수수량: 1
₩219,744
라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
제품 정보
| 제조업체 | TE CONNECTIVITY - RAYCHEM |
|---|---|
| 제조업체 부품 번호 | RPS-16-10/2.0-9복사 |
| 제조업체 표준 리드 타임 | 6주 |
| 주문 코드 | 589901 |
| Product Range | RPS Series |
| 기술 데이터 시트 | |
| Marker Type | Heat Shrinkable Sleeve |
| Legend | - |
| Marker Material | PO (Polyolefin) |
| Marker Colour | White |
| Marker Dimensions | - |
| I.D. Max | 6.35mm |
| I.D. Min | 2.11mm |
| Shrink Ratio | 3:1 |
| Product Range | RPS Series |
| SVHC | No SVHC (21-Jan-2025) |
제품 개요

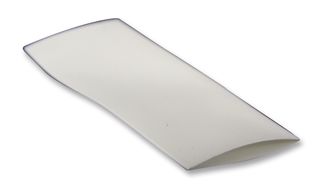

The RPS-16-10/2.0-9 is a 6.35mm a white commercial-grade heat-shrinkable Marker Sleeve made of durable polyolefin with 16 to 10AWG wire gauge. This RPS-series marker sleeve is designed to meet commercial, industrial wire and cable identification needs. When RPS is printed with Tyco Electronics recommended printers and ink ribbons, the marks remain legible, without any post printing process, even when exposed to abrasion, aggressive cleaning solvents and industrial fluids. For use with AM6310 dot matrix and T312M, T208M thermal transfer printers.
- Permanent identification sleeves
- Computer-printable
- Excellent print performance
- Configured for ease of kitting
- Good chemical and solvent resistance
- -30 to 105°C Operating temperature range
애플리케이션
Industrial, Commercial
기술 사양
| Marker Type | Heat Shrinkable Sleeve |
|---|---|
| Marker Material | PO (Polyolefin) |
| Marker Dimensions | - |
| I.D. Min | 2.11mm |
| Product Range | RPS Series |
| Legend | - |
|---|---|
| Marker Colour | White |
| I.D. Max | 6.35mm |
| Shrink Ratio | 3:1 |
| SVHC | No SVHC (21-Jan-2025) |
관련 제품
1개 제품을 찾았습니다.
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | Czech Republic 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 85469010 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (21-Jan-2025) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .36 |
