| 제조업체 | RECOM POWER |
|---|---|
| 제조업체 부품 번호 | RPMH5.0-1.5-CT복사 |
| 제조업체 표준 리드 타임 | 19주 |
| 주문 코드 | 3977374 |
| Product Range | RPMH-1.5 Series |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
더 필요하세요?
| 수량 | 가격 |
|---|---|
| 1+ | ₩14,085 |
| 5+ | ₩13,566 |
| 10+ | ₩13,347 |
| 50+ | ₩12,775 |
제품 정보
| 제조업체 | RECOM POWER |
|---|---|
| 제조업체 부품 번호 | RPMH5.0-1.5-CT복사 |
| 제조업체 표준 리드 타임 | 19주 |
| 주문 코드 | 3977374 |
| Product Range | RPMH-1.5 Series |
| 기술 데이터 시트 | |
| Power Supply Applications | ITE |
| DC / DC Converter Type | Module |
| No. of Outputs | 1 Output |
| Output Power Max | 7.5W |
| Output Voltage Nom | 5V |
| Output Current Max | 1.5A |
| DC / DC Converter Output Type | Fixed, Adjustable |
| DC / DC Converter Mounting | Surface Mount Device |
| Input Voltage DC Min | 7V |
| Input Voltage DC Max | 60V |
| Depth | 12.19mm |
| Width | 12.19mm |
| Height | 3.75mm |
| Product Range | RPMH-1.5 Series |
| SVHC | No SVHC (04-Feb-2026) |
제품 개요

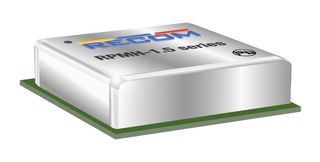

RPMH5.0-1.5-CT is a RPMH-1.5 series DC/DC converter. It is a wide input voltage, 1.5A non-isolated switching regulator power module. The module accepts up to 60VDC input and provides a trimmable output from 2.6 up to 28VDC and comes complete with a full set of features including adjustable output, on/off control, and power good signals. The ultra-compact module has a profile of only 3.75mm, but with an efficiency of up to 97%, the device can operate at full load in ambient temperatures as high as +100°C and with power derating up to 105°C without forced air cooling. The package is complete with 6-sided shielding for optimal EMC performance and excellent heat management.
- Wide input voltage of 7 to 60VDC, 5VDC output voltage
- High power density (LxWxH = 12.19x12.19x3.75)
- Wide operating temperature -40°C to 100°C at full load
- 1.5A output current
- Thermally and EMI enhanced 25 pad LGA package
- Dimension (LxWxH) is 12.19 x 12.19 x 3.75mm
- 3 year warranty
기술 사양
| Power Supply Applications | ITE |
|---|---|
| No. of Outputs | 1 Output |
| Output Voltage Nom | 5V |
| DC / DC Converter Output Type | Fixed, Adjustable |
| Input Voltage DC Min | 7V |
| Depth | 12.19mm |
| Height | 3.75mm |
| SVHC | No SVHC (04-Feb-2026) |
| DC / DC Converter Type | Module |
|---|---|
| Output Power Max | 7.5W |
| Output Current Max | 1.5A |
| DC / DC Converter Mounting | Surface Mount Device |
| Input Voltage DC Max | 60V |
| Width | 12.19mm |
| Product Range | RPMH-1.5 Series |
기술 문서 (1)
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | Thailand 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 85044095 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .001 |
