| 제조업체 | RENESAS |
|---|---|
| 제조업체 부품 번호 | RTK9EKZA3MS10001BE복사 |
| 제조업체 표준 리드 타임 | 28주 |
| 주문 코드 | 4690413 |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
더 필요하세요?
| 수량 | 가격 |
|---|---|
| 1+ | ₩435,761 |
제품 정보
| 제조업체 | RENESAS |
|---|---|
| 제조업체 부품 번호 | RTK9EKZA3MS10001BE복사 |
| 제조업체 표준 리드 타임 | 28주 |
| 주문 코드 | 4690413 |
| 기술 데이터 시트 | |
| Silicon Manufacturer | Renesas |
| No. of Bits | 64bit |
| Silicon Family Name | RZ |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-A55 |
| Silicon Core Number | R9A07G066M04GBG#AC0 |
| Kit Contents | Evaluation Board R9A07G066M04GBG#AC0, MIPI Graphics Expansion Board, 3 x USB Cable, Screw and Spacer |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
제품 개요

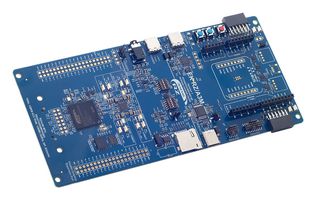

RTK9EKZA3MS10001BE is a evaluation kit featuring 64bit Arm® Cortex®-A55 MPU (1GHz) with built-in DDR3L SDRAM and MIPI graphics expansion board (5inch TFT display, 720*1280 pixel). The RZ/A3M MPU based on the Arm® Cortex®-A55 (CA55) core with NEON™ extension and built-in large capacity 128MB DDR3L memory are equipped with a feature set optimized to address diverse human-machine interface (HMI) for consumer, smart home and building automation, healthcare, industrial applications, and office automation market segments. The RZ/A3M MPUs also integrate features such as high-resolution Graphics LCD controller with parallel RGB and 4-lane MIPI-DSI interfaces to display panels, 2D graphics drawing engine, support QSPI NOR/NAND flash for large-size programs and 244 pin LFBGA package which is ideal for 2-layers board design. Suitable for consumer products, smart home and building automation, healthcare, industrial applications and office automation applications.
- 64bit 1GHz Arm Cortex-A55 with NEON
- Built-in 128MB DDR3L SDRAM
- LCD controller up to WXGA (1280x800) with parallel RGB and MIPI-DSI (4lane) interface
- 2D drawing engine
- QSPI NOR/NAND flash boot
- Enable 2-layer PCB design
- SDHI for high-speed Wi-Fi® module
- I2S for audio interface
- USB 2.0 Interface for USB camera
- UART/SPI/I2C for sensors
목차
EK-RZ/A3M v1 board, USB-C to USB-C cable, USB-C to USB-A cable, USB-C to USB-A female host cable, MIPI graphics expansion board 2, Display mounting hardware (spacers and fixing screws).
기술 사양
| Silicon Manufacturer | Renesas |
|---|---|
| Silicon Family Name | RZ |
| Core Sub-Architecture | Cortex-A55 |
| Kit Contents | Evaluation Board R9A07G066M04GBG#AC0, MIPI Graphics Expansion Board, 3 x USB Cable, Screw and Spacer |
| SVHC | No SVHC (25-Jun-2025) |
| No. of Bits | 64bit |
|---|---|
| Core Architecture | ARM |
| Silicon Core Number | R9A07G066M04GBG#AC0 |
| Product Range | - |
기술 문서 (1)
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | Great Britain 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 85423190 |
| US ECCN: | 3A991.a.2 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .000001 |
