제품 정보
| 제조업체 | SAMTEC |
|---|---|
| 제조업체 부품 번호 | PTHF-130-02-GF-Q-368복사 |
| 제조업체 표준 리드 타임 | 6주 |
| 주문 코드 | 1753931 |
| Product Range | PTHF |
| 기술 데이터 시트 | |
| Connector Systems | Wire-to-Board |
| Pitch Spacing | 2mm |
| No. of Rows | 4Rows |
| No. of Contacts | 120Contacts |
| Connector Mounting | Through Hole Mount |
| Product Range | PTHF |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold Plated Contacts |
| Contact Termination Type | Through Hole |
| SVHC | No SVHC (04-Feb-2026) |
제품 개요

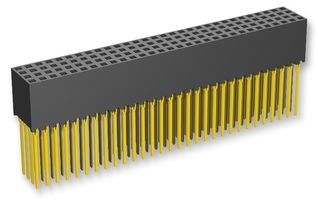

The PTHF-130-02-GF-Q-368 is a 120-position 4-row Self-nesting Socket with gold-plated phosphor bronze contacts and a black high temperature nylon insulator. It mates with ESQT and PTHF series connectors.
- -55 to 125?C Operating temperature range
애플리케이션
Industrial
기술 사양
| Connector Systems | Wire-to-Board |
|---|---|
| No. of Rows | 4Rows |
| Connector Mounting | Through Hole Mount |
| Contact Material | Phosphor Bronze |
| Contact Termination Type | Through Hole |
| Pitch Spacing | 2mm |
|---|---|
| No. of Contacts | 120Contacts |
| Product Range | PTHF |
| Contact Plating | Gold Plated Contacts |
| SVHC | No SVHC (04-Feb-2026) |
PTHF-130-02-GF-Q-368의 대체 제품
1개 제품을 찾았습니다.
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | United States 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .017388 |
