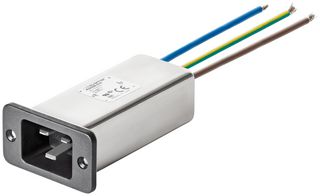

FN9255-16-07

The dual-stage high-performance FN 9255 RFI filter series are an addition to the market proven FN 92XX filter families and are developed for high frequency applications, even above 30MHz. In fact, FN 9255 is the first inlet defined up to 300MHz at Schaffner. The adaption of the filter housing is done in length only, which means the FN 9222, FN 9233, FN 9244 and freshly introduced FN 9255 are fitting in the same cutout, allowing to exchange each other if the performance is not enough with one of the basic models.

• FN 9255 series RFI filter with IEC Inlet C14 or C20
• Exceptional attenuation performance from 150KHz to 300MHz due to dual-stage design
• High saturation resistance and excellent thermal behaviour
• Excellent performance/size ratio
• IP40 safety rating
• Standard housing with mounting flanges (front mount)
• Standard version filter
• Wire leads
• Snap-in range 0.7 to 1.5mm

애플리케이션

Audio, Consumer Electronics, Industrial, Video & Vision
