ZA2BS834

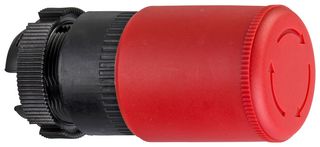

ZA2BS834 is a Harmony XAC, emergency stop / shutdown 30mm mushroom red push-button head operates with a latched turn to release mechanism. This emergency stop button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomic. It is clearly distinguishable visually at a distance thanks to a prominent 30mm mushroom shape. Its schematic is clearly distinguishable thanks to clear colours, minimizing errors during initial wiring and later maintenance operations.

• Latched emergency stop mechanism for maximum safety of operators
• Suitable for installation in harsh environment or outdoor applications due to IP65 protection rating
• Front of enclosure mounting location
• Red cap/operator or lens colour
• IP65 IEC 60529 IP degree of protection
• IK08 EN 50102 IK degree of protection
• Ambient air temperature for operation range from -25 to 70°C
