| 제조업체 | SEEED STUDIO |
|---|---|
| 제조업체 부품 번호 | 101020193복사 |
| 제조업체 표준 리드 타임 | 18주 |
| 주문 코드 | 3932095 |
| Product Range | TUK SGACK902S Keystone Coupler |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
11 재고
255 지금 제품을 예약하실 수 있습니다
11 3-4 영업일 이내 배송(영국 재고)
| 수량 | 가격 |
|---|---|
| 1+ | ₩26,347 |
| 5+ | ₩25,822 |
| 10+ | ₩25,306 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩26,347
라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
제품 정보
| 제조업체 | SEEED STUDIO |
|---|---|
| 제조업체 부품 번호 | 101020193복사 |
| 제조업체 표준 리드 타임 | 18주 |
| 주문 코드 | 3932095 |
| Product Range | TUK SGACK902S Keystone Coupler |
| 기술 데이터 시트 | |
| Silicon Manufacturer | Bosch |
| Silicon Family Name | - |
| Core Architecture | - |
| Core Sub-Architecture | - |
| Silicon Core Number | BME280 |
| Kit Contents | Temperature & Humidity & Barometer Sensor Board, Grove Cable |
| For Use With | Arduino Board |
| Product Range | TUK SGACK902S Keystone Coupler |
제품 개요

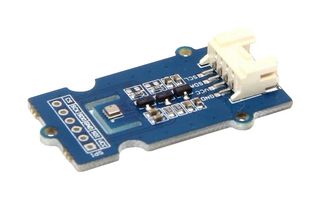

The Grove temperature, humidity and barometer sensor (BME280) provides a precise measurement of not only barometric pressure and temperature, but also the humidity in the environment. The air pressure can be measured in a range from 300 hPa to 1100hPa with ±1.0 hPa accuracy, while the sensor works perfectly for temperatures between - 40℃ and 85℃ with an accuracy of ±1℃. As for the humidity, you can get a humidity value with an error less than 3%.
- Easy-to-use grove compatible interface
- Supports both I2C and SPI communication
- Can be used as an altimeter with the accuracy of ±1 meter
- Dimension is 40mm x 20mm x 15mm
- Supply voltage of 5V or 3.3V
목차
Multifunction sensor and Grove cable
기술 사양
| Silicon Manufacturer | Bosch |
|---|---|
| Core Architecture | - |
| Silicon Core Number | BME280 |
| For Use With | Arduino Board |
| Silicon Family Name | - |
|---|---|
| Core Sub-Architecture | - |
| Kit Contents | Temperature & Humidity & Barometer Sensor Board, Grove Cable |
| Product Range | TUK SGACK902S Keystone Coupler |
기술 문서 (1)
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | Switzerland 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 90318080 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .0095 |
